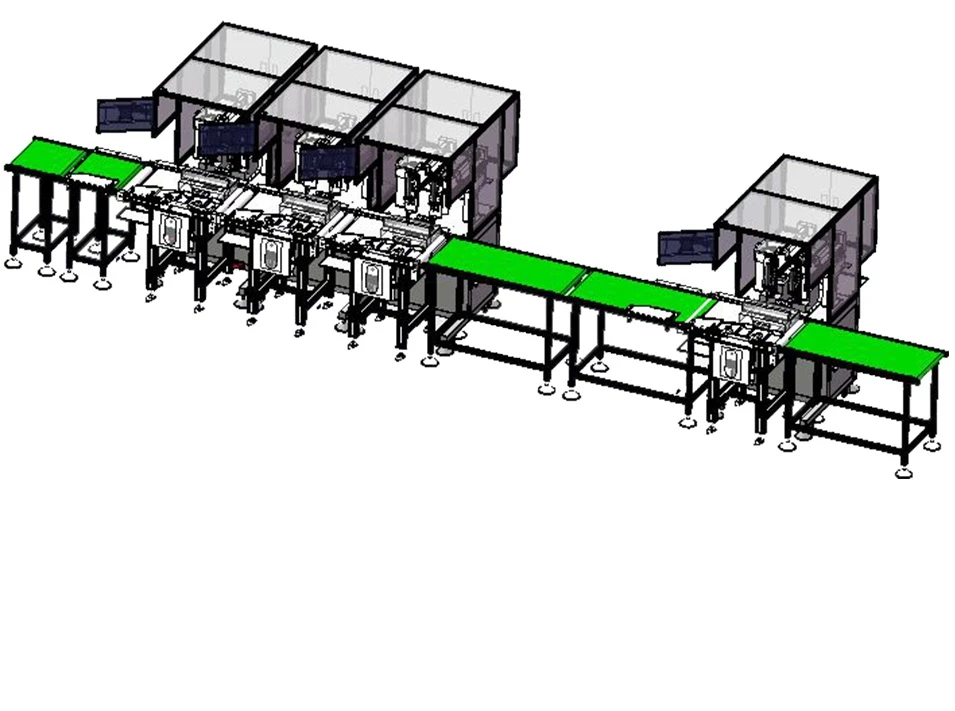

Product Overview
Liquid crystal display production line utilizes advanced manufacturing processes, covering the complete production flow from array, color filter (CF), cell assembly, to module integration, ensuring each step meets industry-leading standards. We provide production line solutions across multiple generations to accommodate displays ranging from small to ultra-large sizes.
Process Flow
1. Array Process
Film Deposition: Apply Physical Vapor Deposition (PVD) or Chemical Vapor Deposition (CVD) to form thin-film layers on glass substrates.
Photolithography: Includes photoresist coating, pattern exposure, and development to create circuit patterns.
Etching: Remove unwanted materials via wet or dry etching for precise patterning.
Stripping: Remove temporary protective layers (e.g., photoresist) to complete the array process.
2. Color Filter (CF) Process
Black Matrix Formation: Coat black material to prevent light leakage.
Color Filter Formation: Create RGB color filters through photolithography and coating.
ITO Layer Formation: Deposit transparent conductive material (ITO) for electrodes.
3. Cell Assembly Process
Substrate Preparation: Clean and inspect array and CF substrates.
LC Injection: Fill liquid crystal material between substrates to form the LC layer.
Alignment & Sealing: Precisely align and bond substrates, sealing edges to create LC cells.
4. Module Assembly
Backlight Installation: Integrate light sources, light guides, and reflectors.
Driver Circuit Mounting: Connect PCBs to LC cells for signal transmission.
Polarizer Attachment: Apply polarizers to enhance display performance.
Final Assembly & Testing: Assemble components into modules and test brightness, color, contrast, etc.
Technical Advantages
High-Generation Line Technology: Gen 10.5 lines enable ultra-large display production with high cutting efficiency and cost advantages, ideal for TVs and monitors.
High-Precision Manufacturing: Advanced photolithography and etching ensure pixel accuracy, supporting 4K/8K resolutions.
Automated Production: Full-process automation minimizes manual intervention, boosts efficiency/yield, and optimizes parameters via smart monitoring.
Low-Power Design: Energy-saving technologies reduce production energy consumption, aligning with sustainability goals.
Product Features
High Efficiency: Optimized for mass production with high throughput.
High Reliability: Rigorous quality control ensures product stability.
Custom Flexibility: Configurable lines support IPS, VA, OLED, and other display technologies.
Fast Delivery: Mature supply chain ensures timely project completion.
Applications
LCD production lines are widely used in:
Consumer Electronics: Smartphones, tablets, laptops, monitors, TVs.
Automotive Displays: Infotainment systems, dashboards, rear-seat screens.
Industrial Control: Medical devices, surveillance systems, smart terminals.
Smart Home: Smart fridges, air conditioners, TVs.
Market Value
LCD production lines drive display industry advancements with the following benefits:
Large-Size Demand: High-gen lines meet growing market needs for larger screens.
Competitive Edge: High resolution, contrast, and low power consumption enhance product appeal.
Cost Reduction: Automation and high cutting efficiency lower per-unit costs.
