The maximum soldering area of a soldering machine is a crucial parameter that directly impacts its efficiency, versatility, and applicability in various industries. As a leading supplier of soldering machines, we understand the significance of this factor and are committed to providing our customers with in - depth knowledge and high - quality products to meet their diverse needs.
Understanding the Concept of Maximum Soldering Area
The maximum soldering area refers to the largest surface area on a printed circuit board (PCB) or other workpieces that a soldering machine can effectively solder in a single operation. This area is determined by several factors, including the design of the soldering head, the movement range of the machine's axes, and the overall size and structure of the soldering equipment.

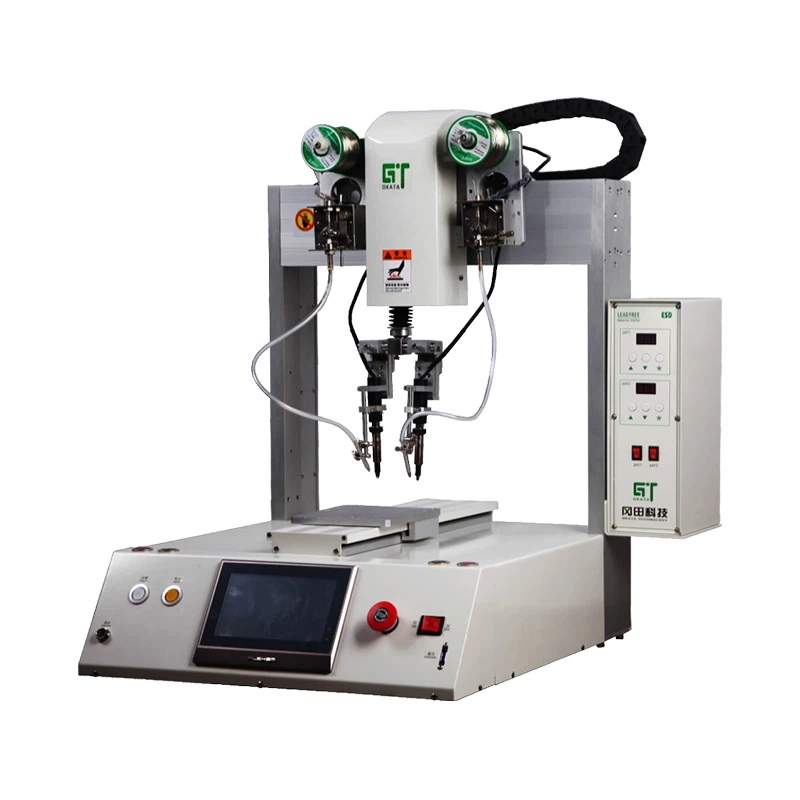

For instance, in a traditional single - head soldering machine, the soldering area is often limited by the reach of the soldering iron tip. If the tip can only move within a certain radius, the maximum area it can cover will be restricted accordingly. On the other hand, multi - head soldering machines, such as the Automatic Soldering Machine with Double Heads, can significantly increase the soldering area by operating multiple soldering heads simultaneously. These double - head machines can cover more ground in less time, improving productivity for large - scale production.
Factors Affecting the Maximum Soldering Area
1. Machine Structure
The physical structure of the soldering machine plays a vital role in determining the maximum soldering area. Floor - type soldering machines, like the Floor - type Laser Soldering Machine, usually have a larger working space compared to benchtop models. Their robust design allows for greater movement of the soldering components, enabling them to handle larger PCBs or workpieces. The floor - type structure provides a stable base for the machine, which is essential when dealing with large - area soldering to ensure accurate and consistent results.
2. Axis Movement Range
The range of movement along the X, Y, and Z axes is another critical factor. A soldering machine with a wide range of axis movement can reach different parts of the workpiece more easily, thereby increasing the maximum soldering area. High - precision servo motors are often used in modern soldering machines to control the movement of the axes, providing smooth and accurate positioning. This allows the soldering head to access every corner of the workpiece, ensuring comprehensive soldering coverage.
3. Soldering Head Design
The design of the soldering head also affects the soldering area. Some soldering heads are designed with a wider tip or multiple tips, which can cover a larger area in a single pass. Additionally, the ability of the soldering head to rotate or tilt can further enhance its flexibility and increase the effective soldering area. For example, a rotatable soldering head can adjust its angle to reach difficult - to - access areas on the PCB, expanding the overall soldering area.
Applications and Requirements for Different Maximum Soldering Areas
1. Consumer Electronics
In the consumer electronics industry, where PCBs are becoming increasingly complex and miniaturized, the maximum soldering area requirements vary. For small - sized devices such as earbuds or smartwatches, soldering machines with a relatively small maximum soldering area may be sufficient. However, for larger consumer electronics like laptops or tablets, soldering machines with a larger soldering area are needed to handle the larger PCBs. Our Automatic Soldering Machine can be customized to meet the specific soldering area requirements of different consumer electronics manufacturers, ensuring high - quality soldering results.
2. Automotive Electronics
The automotive electronics industry demands soldering machines with large maximum soldering areas. Automotive PCBs are often larger in size and more complex, with a high density of components. These PCBs require precise and reliable soldering to ensure the safety and performance of the vehicle. Our floor - type soldering machines, with their large working spaces and high - precision soldering capabilities, are well - suited for automotive electronics manufacturing. They can handle the large - area soldering requirements of automotive PCBs, providing consistent and high - quality soldering joints.
3. Aerospace and Defense
In the aerospace and defense industries, the soldering requirements are extremely strict. The PCBs used in these applications are not only large but also need to meet high - reliability standards. A soldering machine with a large maximum soldering area and high precision is essential to ensure the quality and integrity of the soldering joints. Our advanced soldering machines are designed to meet the rigorous demands of the aerospace and defense sectors, providing accurate and reliable soldering solutions for large - scale PCBs.
How to Choose the Right Soldering Machine Based on the Maximum Soldering Area
When choosing a soldering machine, it is important to consider the maximum soldering area requirements of your specific application. Here are some steps to help you make the right decision:
1. Analyze Your Workpiece Size
Measure the size of the PCBs or workpieces you need to solder. This will give you a clear idea of the minimum maximum soldering area required. Consider the future growth of your production and any potential changes in the workpiece size.
2. Evaluate Your Production Volume
If you have a high - volume production, a soldering machine with a larger maximum soldering area and higher productivity is recommended. Multi - head soldering machines or machines with high - speed soldering capabilities can significantly improve production efficiency.
3. Consider the Complexity of the Workpiece
If your workpiece has complex geometries or hard - to - reach areas, a soldering machine with a flexible soldering head and a wide range of axis movement is necessary. This will ensure that all components on the workpiece can be properly soldered.
As a professional soldering machine supplier, we have a wide range of soldering machines with different maximum soldering areas to meet your diverse needs. Whether you are a small - scale manufacturer or a large - scale industrial enterprise, we can provide you with the most suitable soldering solution. If you are interested in our products or have any questions about the maximum soldering area of our soldering machines, please feel free to contact us for procurement and negotiation. We look forward to working with you to achieve your soldering goals.
